Jller
2015
Prokop Bartoníček, Benjamin Maus
Jller is part of an ongoing research project in the fields of industrial automation and historical geology. It is an apparatus, that sorts pebbles from a specific river by their geologic age. The stones were taken from the stream bed of the German river Jller, shortly before it merges with the Danube.

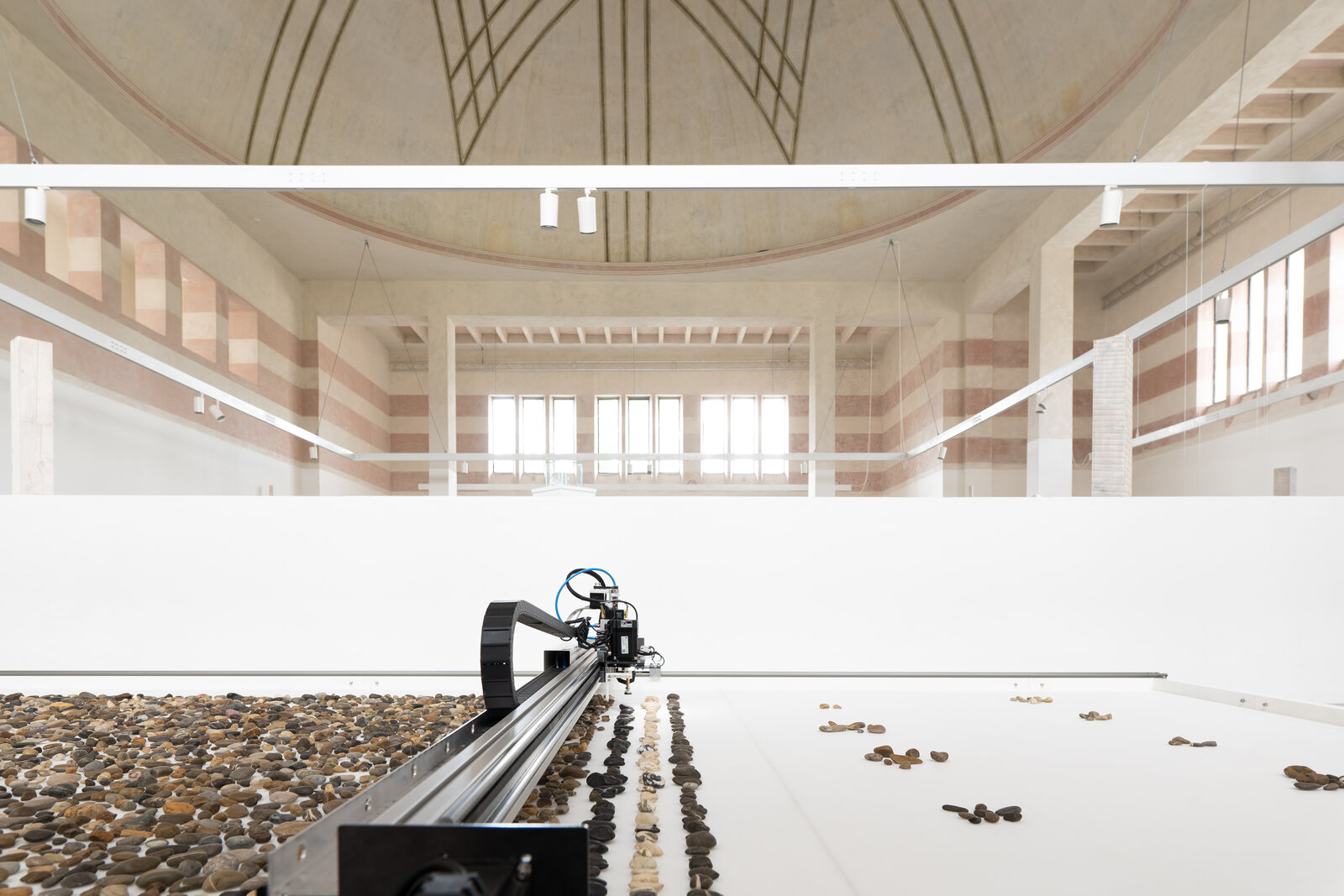

Exhibition in Nová synagóga Žilina, SK
Context

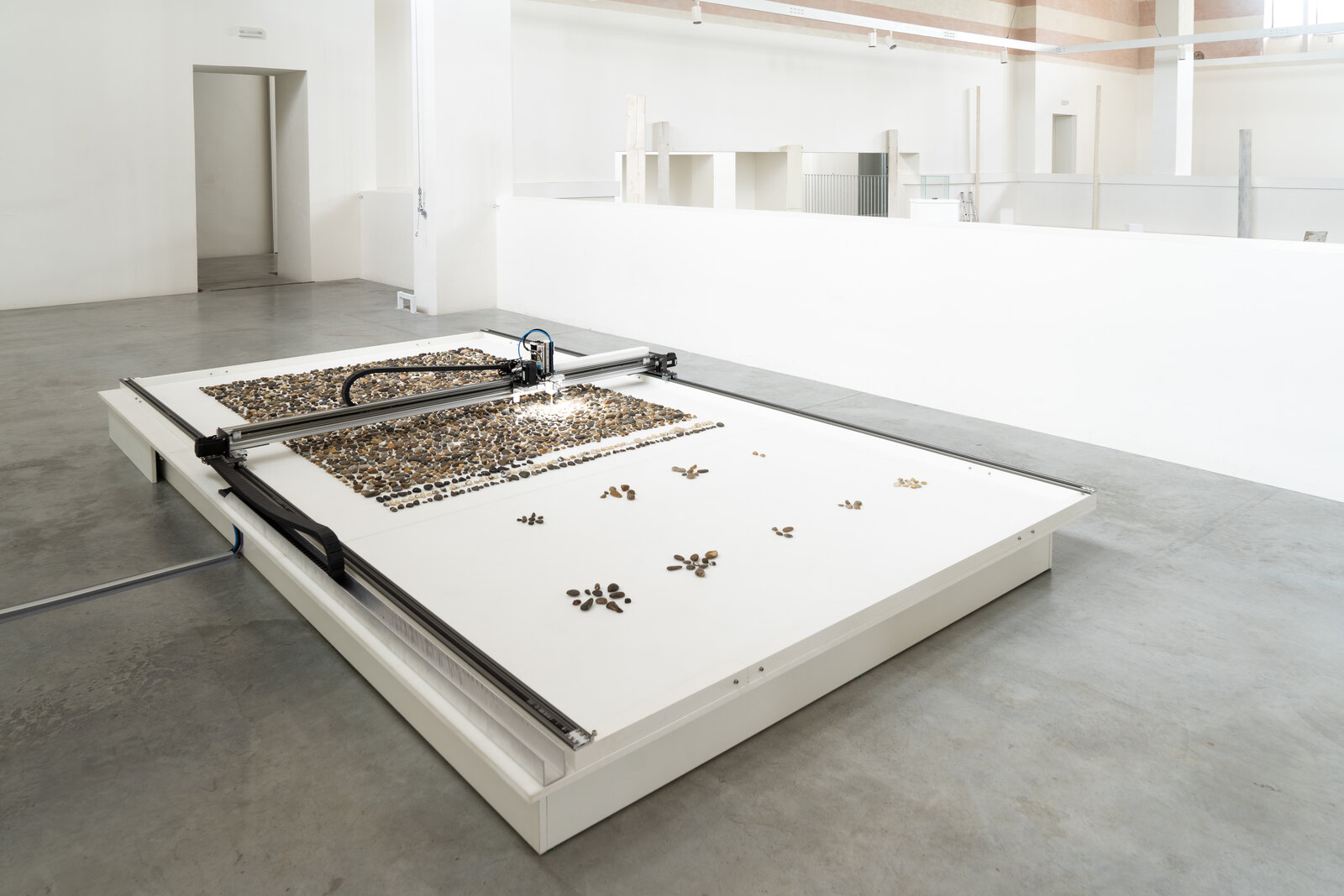

A set of pebbles from the Jller are placed on the 2×4 meter platform of the machine, which automatically analyzes the stones in order to then sort them. The sorting process happens in two steps: Intermediate, pre-sorted patterns are formed first, to make space for the final, ordered alignment of stones, defined by type and age. Starting from an arbitrary set of stones, this process renders the inherent history of the river visible.
Video
The history, origin and path from each stone found in a river is specific to the location, as every river has a different composition of rock types. The origin of those stones is well documented. For instance, the ones from the river Jller derive from two origins. Some come from rocks, that are the result of erosions in the Alps and are carried in from smaller rivers. Other stones have been ground and transported by glaciers that either still exist, or existed in the ice ages. As the Alps and flats, that were once covered by glaciers, have shifted, even deeper rock-layers were moved and as a result, stones from many geologic periods make their way into a river. When the history of a river is known, the type of stone can be directly related to its geological age.
Stones of the same type are arranged in lines

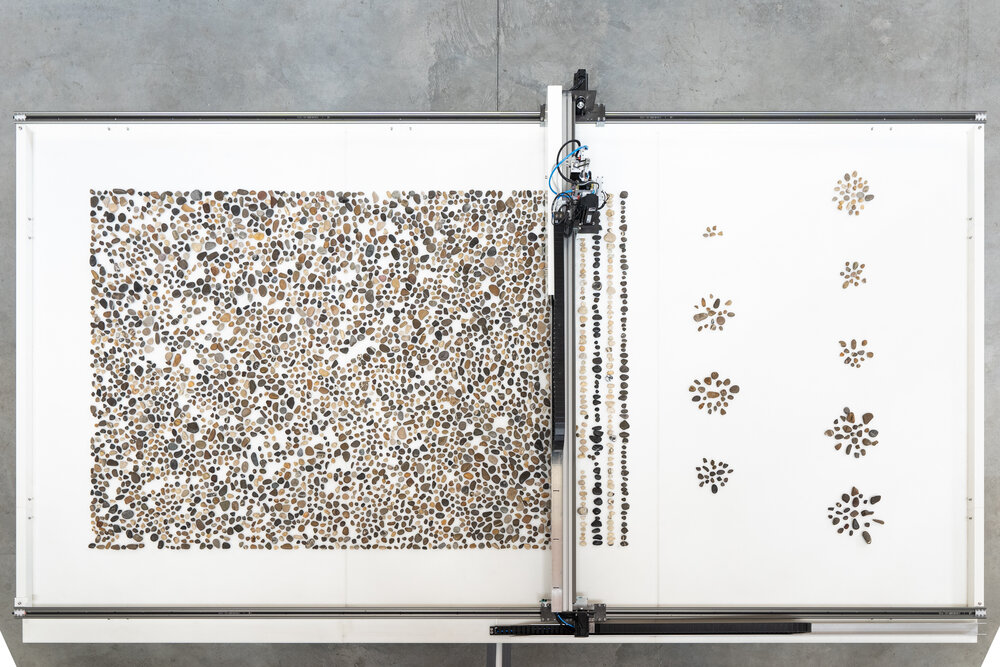

Some lines of already sorted stones on the left, flower patterns of pre-sorted stones on the right.
Technology
The machine works with a computer vision system that processes the images of the stones and maps each of its location on the platform throughout the ordering process. The information extracted from each stone are dominant color, color composition, and histograms of structural features such as lines, layers, patterns, grain, and surface texture. This data is used to assign the stones into predefined categories. Those categories represent the range of stones that can be found in the specific river and correspond directly to the age of the stone. They are the result of a classification system that is trained by sets of manually selected and labeled stones. Because there are only a limited number of stone types that can be found in a specific river, this system proves to be very accurate.

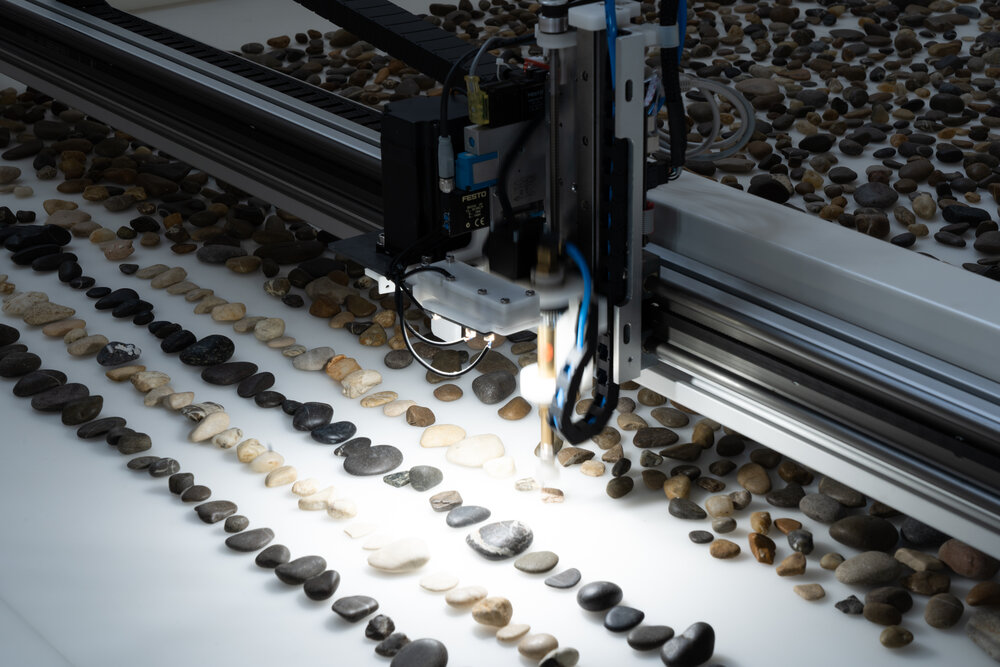

Sorting head

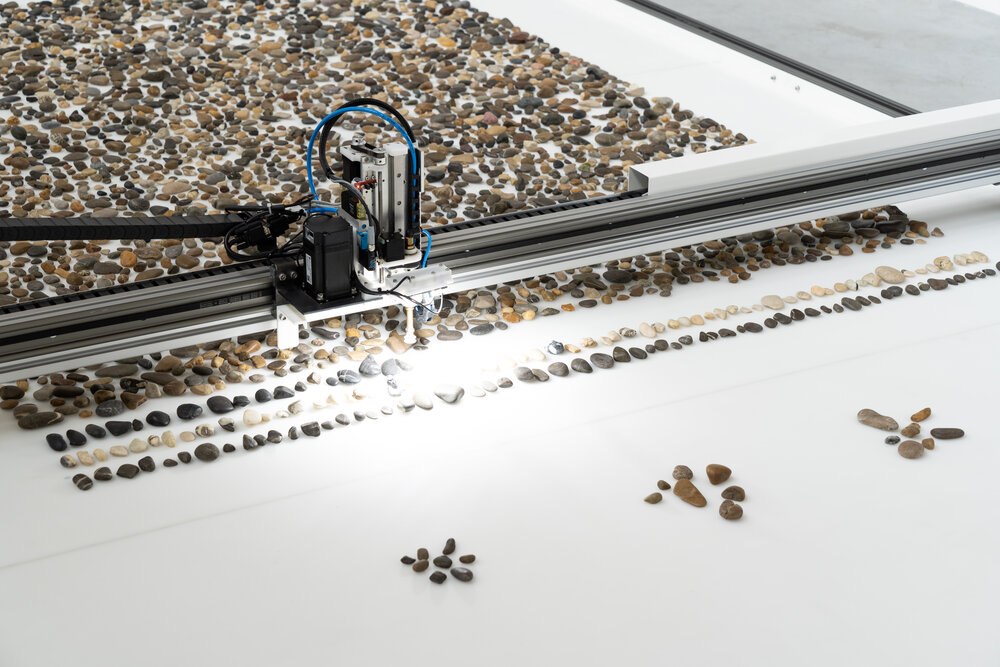

Vacuum picker, rotational axis
Credits
Authors, Concept: Prokop Bartoníček, Benjamin Maus
Mechanics: Benjamin Maus, Prokop Bartoníček, Tomislav Arnaudov
Electronics: Benjamin Maus, Pavol Rusnak, Tomislav Arnaudov
Programming: Benjamin Maus, Pavol Rusnak
Developed at: pebe/lab (Prague) and FELD (Berlin)
Presented at: Ex Post, Prague
Interview on WIRED: Someone Built a Rock-Sorting Robot and It Is Downright Hypnotizing
The project was supported by the Czech-German Future Fund.

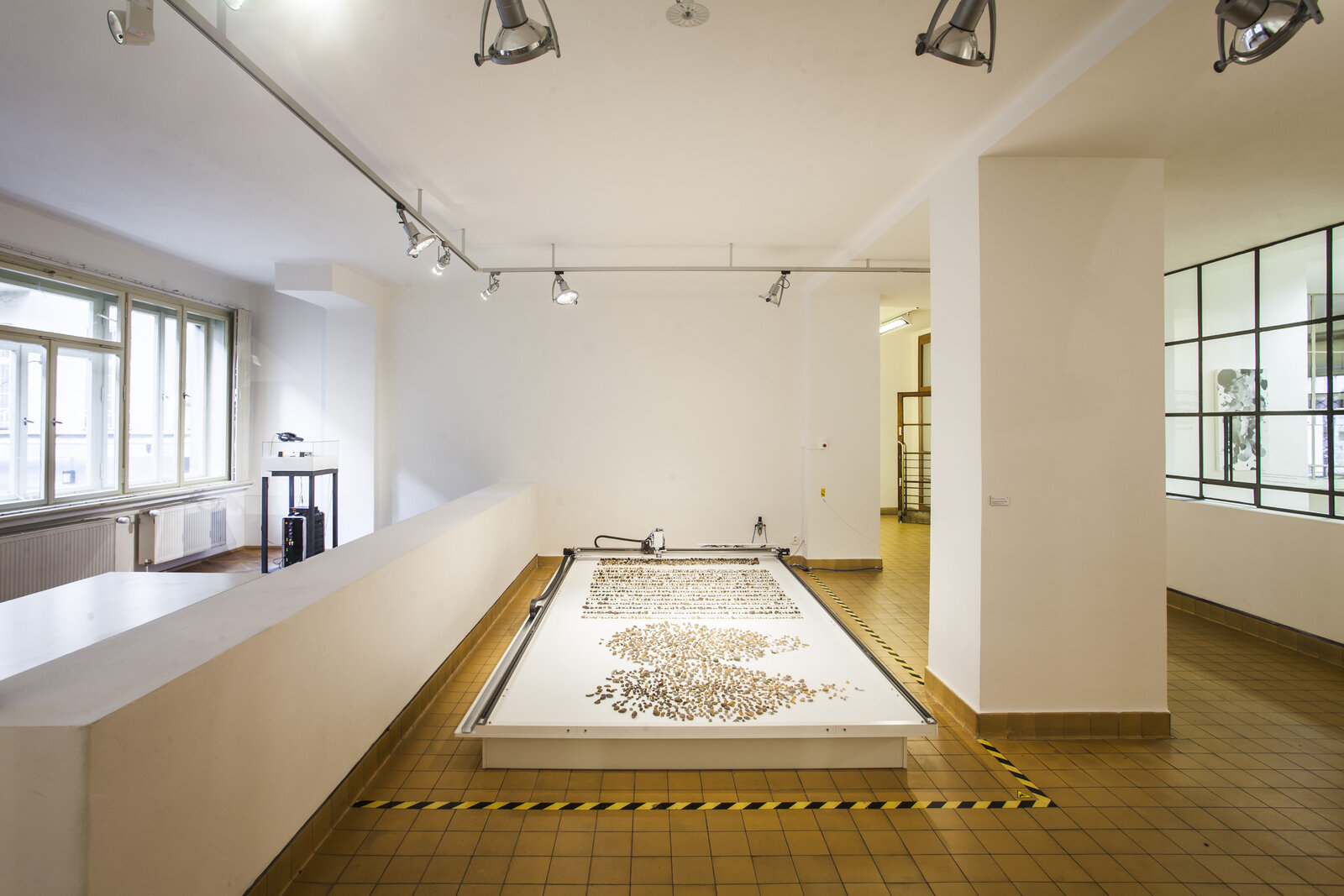

First occurence at Ignorance exhibiton, ExPost, Prague
